Option Levels plots key strike levels directly on your price chart as horizontal lines, based on options volume, gamma exposure, or open interest. These levels highlight where the most significant options activity is concentrated, helping you identify potential call walls, put walls, and other structurally important price zones.

Note: Option Levels is available on NDX, QQQ, SPY, and SPX.

How to Add Option Levels

1. Go to New in the top menu

2. Click on Option Chart



3. A Select Instrument dialog will appear with the following options:

   • NDX - Symbol: NQ-CME, Exchange: CME

   • QQQ - Symbol: NQ-CME, Exchange: CME

   • SPX - Symbol: ES-CME, Exchange: CME

   • SPY - Symbol: ES-CME, Exchange: CME



4. Select your preferred instrument and click to open the chart

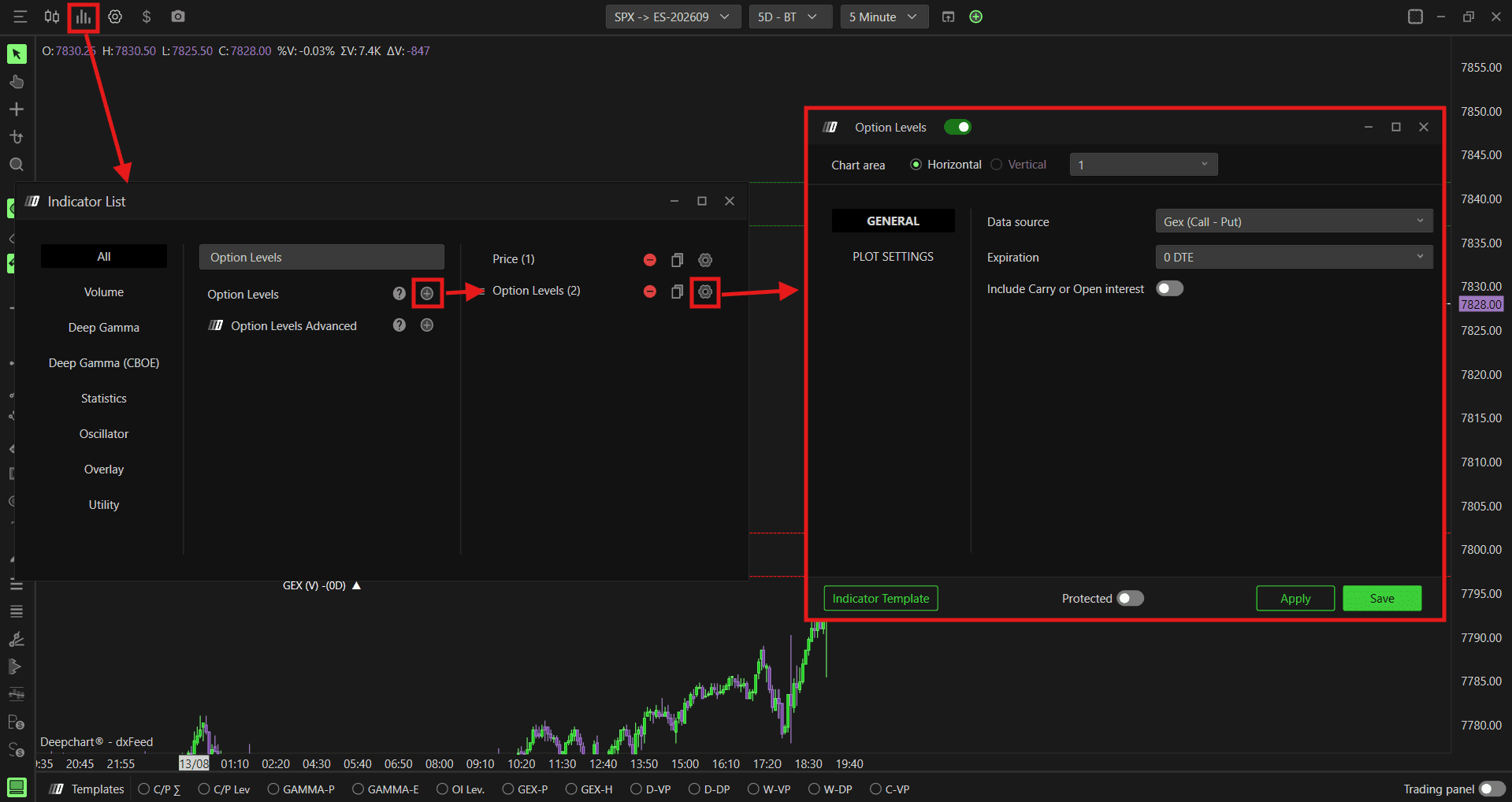

5. Once the Option Chart is loaded, click the Indicator Add button on the chart toolbar

6. Search for Option Levels and click + to add it

7. Click the settings icon to open the configuration window



Understanding the Indicator

Option Levels plots horizontal lines directly on your price chart, based on your selected data source. The number of levels shown depends on your Number of levels setting, and each one is ranked by strength using triangle markers, more triangles indicate a stronger concentration at that strike.

Each level is labeled based on your selected data source and expiration filter. Green levels with downward triangles represent positive values, while red levels with upward triangles represent negative values.

Understanding Key Terms

Before choosing a data source, it helps to understand a few core options concepts:

• Call - An option that gives the buyer the right to buy the underlying at a set price. Traders buy calls when they expect price to go up

• Put - An option that gives the buyer the right to sell the underlying at a set price. Traders buy puts when they expect price to go down

• Gamma - A measure of how much an option’s delta changes as price moves. High gamma means dealers need to hedge more aggressively as price approaches a strike, which is why gamma concentrations often act as support or resistance

• OI (Open Interest) - The total number of option contracts currently open and not yet closed or expired

• Gex (Call - Put) - Net gamma exposure calculated using the standard assumption that market makers are long calls and short puts

• Call/Put Σ - Raw call and put options volume, with no gamma weighting



Settings

Parameters

General

• Data source - Choose how the levels are calculated. Options available:

  • Gex (Call - Put) (default) - calculates levels based on net gamma exposure, showing where dealer hedging pressure is most concentrated.
    Use this when: you want a gamma-weighted read on positioning and market regime, similar to what you would use to read Option Envelopes

  • Call/Put Σ - calculates levels based on total call and put volume, showing classic call wall and put wall levels.
    Use this when: you want a simple read on where the most contracts are trading, regardless of gamma weighting

  • OI (R.T.) - calculates levels using our real time open interest calculation, based on live buy and sell flow rather than end of day data.
    Use this when: you want to see live standing positions without any gamma weighting

• Expiration - Filter levels by expiration. Options available: 0 DTE, <= 1d, <= 7d, <= 31d, <= 91d, All expirations. Default is All expirations

• Include Carry or Open Interest - When enabled, includes open interest carried over from previous sessions into the calculation, giving you a broader view of total positioning. When disabled, only the current session data is considered. Default is disabled

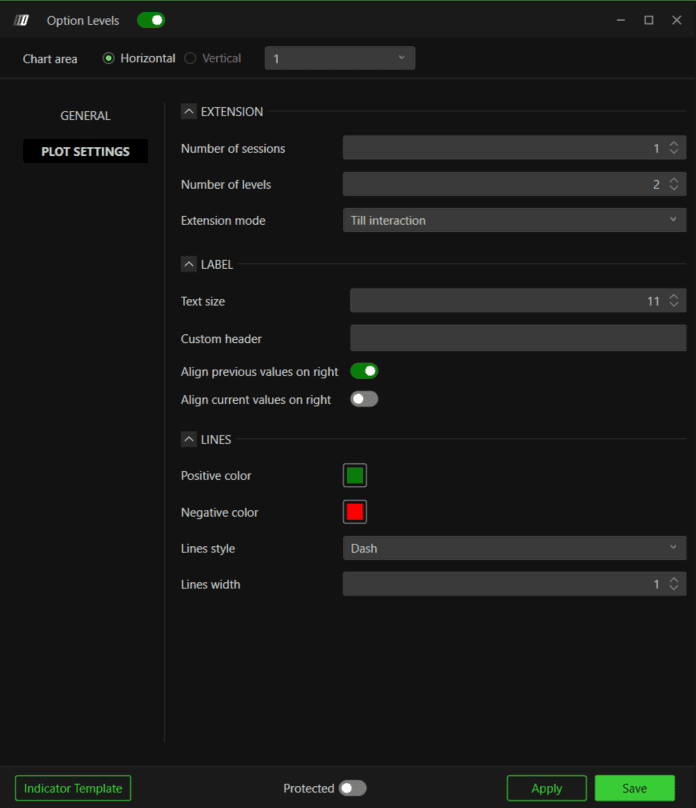

Plot Settings

Extension

• Number of sessions - Set how many previous sessions the levels are extended across. Default is 1

• Number of levels - Set how many levels are plotted on the chart. Default is 2. Each level plotted is ranked by strength using triangle markers, more levels shown means more strikes are ranked and compared against each other

• Extension mode - Choose how the level lines are extended. Options available:

  • None - no extension, levels are plotted only for the current session

  • Till interaction (default) - extends the line until price interacts with it

  • Till end window - extends the line to the end of the visible chart window

Label

• Text size - Set the font size for the level labels. Default is 11

• Custom header - Add a custom label text to the levels if needed

• Align previous values on right - When enabled, aligns labels for previous session values to the right side of the chart. Default is enabled

• Align current values on right - When enabled, aligns labels for current session values to the right side of the chart. Default is disabled

Lines

• Positive color - Set the color for positive levels. Default is green

• Negative color - Set the color for negative levels. Default is red

• Lines style - Choose the line style. Options available: Solid, Dash, Dot, Dash dot, Dash dot dot. Default is Dash

• Lines width - Set the thickness of the lines. Default is 1



Example - How to Use Option Levels

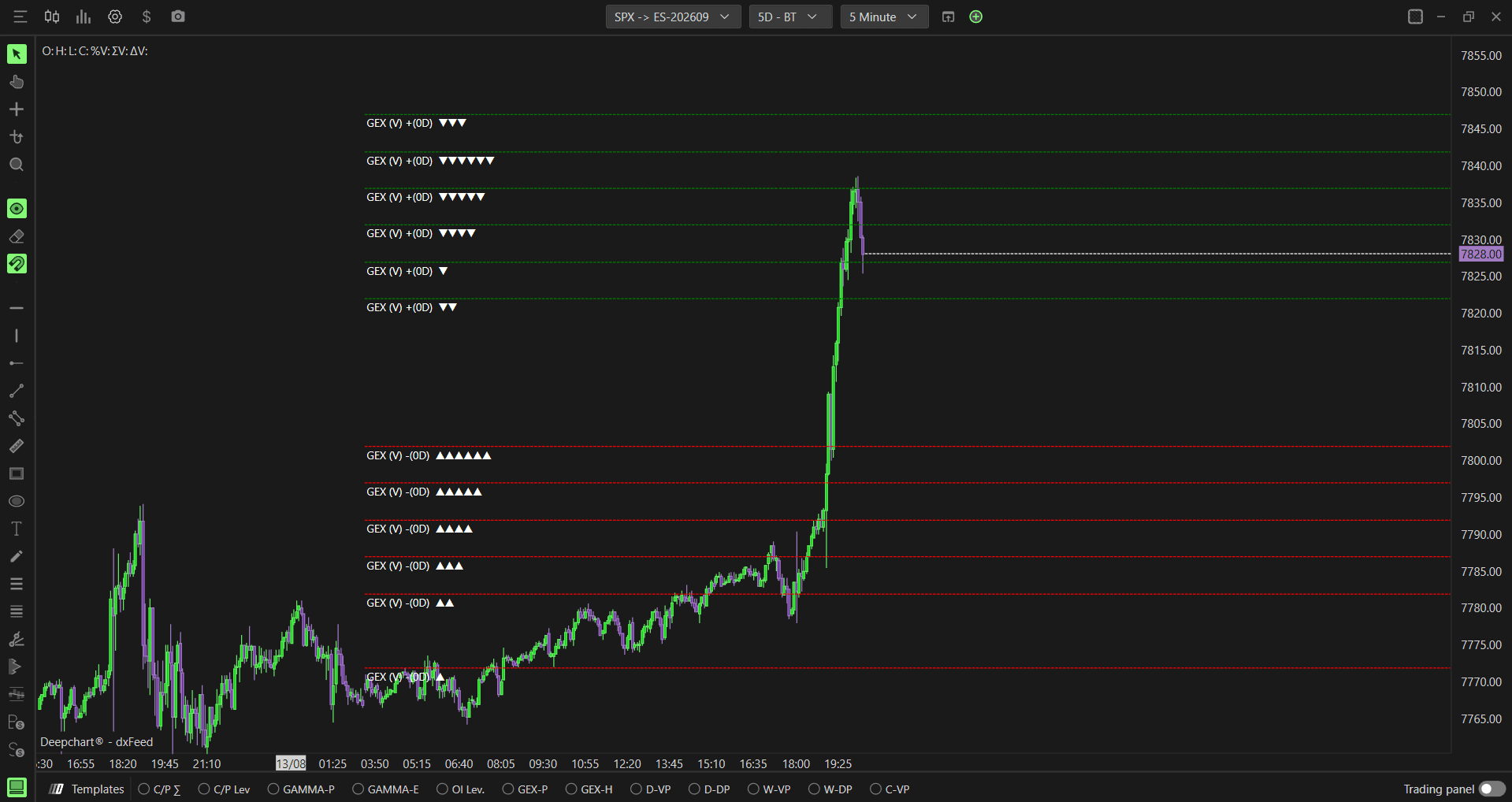

Once added to your chart, you will see horizontal lines plotted at key strike levels, each ranked by strength using the triangle markers. Here is a simple way to use them:

• The number of triangles tells you how significant that level is relative to the others on your chart. A level with more triangles represents a stronger concentration than one with fewer

• How price reacts at a level depends on the direction it is approaching from and which side of the market that level represents. Watch for a slowdown, reversal, or acceleration as price reaches the level, rather than assuming a fixed outcome

• Switching the data source between Gex, Call/Put volume, and real time open interest can give you different perspectives on the same price action, since each highlights a different type of positioning

• Combine Option Levels with Option Profile to see the full distribution behind the levels, since Option Levels only shows you the top ranked strikes rather than the complete picture

Tip: Use Option Levels alongside Option Envelopes for a fuller picture. Envelopes show you the broader zero gamma regime, while Option Levels highlights the specific strikes where activity is concentrated.
