The Overlay Annotations indicator from Deepcharts allows you to import annotations provided by an indicator belonging to another chart, such as the Deep swing or Bar Poc into a chart.

Settings of Use

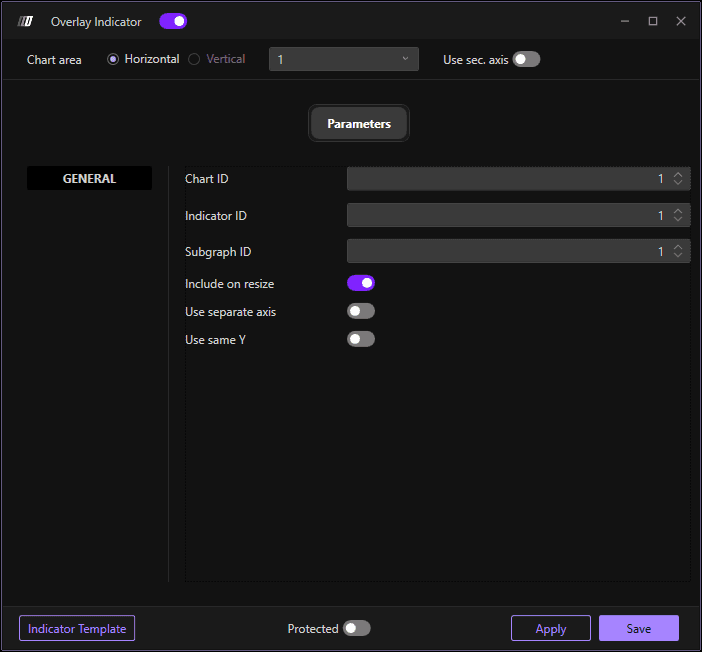

Click on the indicators icon in the upper left corner and add the indicator Overlay Annotations to the chart to which you want to import annotations. Access the indicator settings to set the Chart ID and Indicator ID parameters.

Chart ID

Right-click the mouse and select Finder Window, secondly enable the Mirror and position yourself on the chart from which you want to export the annotations to identify its Chart ID.

This will be identified in the first row of the viewfinder window, add that value in the Annotation Overlay indicator, as shown in the figure.

Indicator ID

Access the indicator list of the chart from which you want to export annotations to identify its ID, which is the small number in parentheses next to the indicator of our interest.

Add that value in the Annotation Overlay indicator as shown in the figure.

Finally, click on Apply and Save in the lower right corner.

In this other example you want to import into a 5-minute chart the Bar Poc indicator set on a 30-minute chart.
